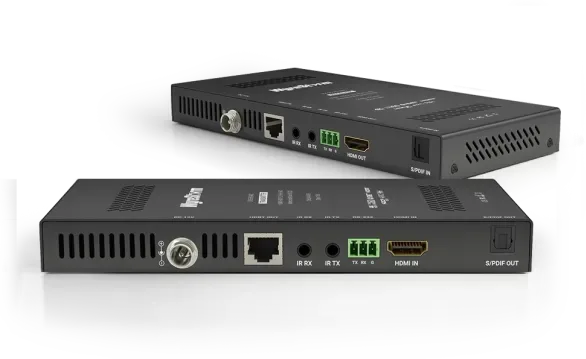

WyreStorm EX-35-H2-ARC ─ приёмник/передатчик
Артикул: EX-35-H2-ARC
Цена по запросу
| Входы | Transmitter 1x HDMI 19-pin type A Receiver 1x HDBaseT™ 8-pin RJ-45 female1x S/PDIF In: TOSLINK (Digital Optical) |
| Выходы | Transmitter 1x HDBaseT™ 8-pin RJ-45 female1x S/PDIF Out: TOSLINK (Digital Output)1x Source Audio Out: 3-pin PheonixReceiver1x HDMI 19-pin type A |
| Форматы аудио | 2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos |
| Кодирование выходного видео | HDBaseT™ Class B |
| Скорость кодирования данных | 9.2Gbps |
| Задержка «End to End» | 10μs (micro seconds) |
| Разрешение | HDMI 1920x1080p @60Hz 12bit (15m/49ft) 1920x1080p @60Hz 16bit (7m/23ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (3m/10ft) 3840x2160p @60Hz 8bit 4:4:4 (7m/23ft) 4096x2160p @60Hz 8bit 4:2:0 (7m/23ft) 4096x2160p @60Hz 8bit 4:4:4 (7m/23ft) Cat6 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (35m/115ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (35m/115ft) 3840x2160p @60Hz 8bit 4:4:4 (35m/115ft) 4096x2160p @60Hz 8bit 4:2:0 (35m/115ft) 4096x2160p @60Hz 8bit 4:4:4 (35m/115ft) Cat6a/7 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (70m/230ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (70m/230ft) 3840x2160p @60Hz 8bit 4:4:4 (70m/230ft) 4096x2160p @60Hz 8bit 4:2:0 (70m/230ft) 4096x2160p @60Hz 8bit 4:4:4 (70m/230ft) |
| Поддерживаемые стандарты | DC | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 |
| Maximum Pixel Clock | HDMI: 600MHz | HDBaseT: 297MHz |
| HDMI | HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included) |
| HDBaseT™ | HDMI | HDCP 2.2 | EDID | ARC | 2-way PoH | Bidirectional IR and RS-232 |
| CEC | CEC Pass-through – Requires CEC compatibility between source and display |
| ИК | 1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT™1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT™ |
| RS-232 | 1x 3-pin Screw Down Phoenix Connector (Transmitter and Receiver) |
| ARC | Supports true ARC from display to the transmitter over HDBaseT™. |
| Источник питания | 12V DC 3A |
| PoH | 48V 15.4W | 2-way |
| Макс. потребляемая мощность | 8.88W |
| Безопасность | CE | FCC | RoHS |
| Rack Units | Wall Box | <1U |
| Высота | 21mm/0.83in |
| Ширина | 195mm/7.68in |
| Глубина | 94.8mm/3.74in |
| Вес, кг | 0.36kg/0.79lbs |
| Рабочая температура, °C | 32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing |
| BTU/БТЕ макс. | 30.30 BTU/hr |
О товаре
WyreStorm EX-35-H2-ARC Комплект приёмника/передатчика 4K HDR 4:4:4 60Hz HDBaseT™ с PoH, двунаправленная передача ИК & True ARC (4K: 35м, 1080p: 70м) на сайте "Хай-Тек Медиа"
