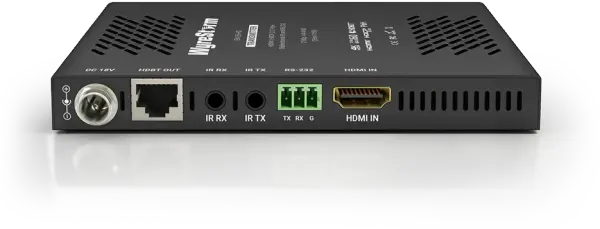

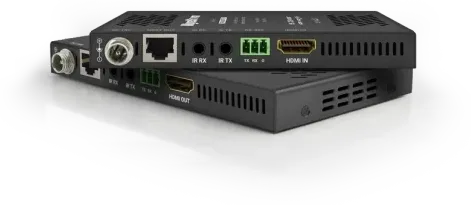

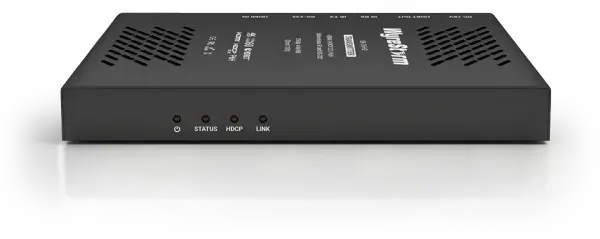

WyreStorm EX-35-H2 ─ приёмник/передатчик
Артикул: EX-35-H2
Цена по запросу
| Входы | Transmitter 1x HDMI 19-pin type AReceiver1x HDBaseT™ 8-pin RJ-45 female |
| Выходы | Transmitter 1x HDBaseT™ 8-pin RJ-45 femaleReceiver1x HDMI 19-pin type A |
| Форматы аудио | 2ch Analog/PCM | Multichannel: LPCM Up to DTS-X and Dolby Atmos |
| Кодирование выходного видео | HDBaseT™ Class B |
| Скорость кодирования данных | 9.2Gbps |
| Задержка «End to End» | 10μs (micro seconds) |
| Разрешение | HDMI v1/2 1920x1080p @60Hz 12bit (15m/49ft) 1920x1080p @60Hz 16bit (7m/23ft) 3840x2160p @24Hz 10bit 4:2:0 HDR (3m/10ft) 3840x2160p @30Hz 8bit 4:4:4 (7m/23ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (3m/10ft) 4096x2160p @60Hz 8bit 4:2:0 (7m/23ft) 4096x2160p @60Hz 8bit 4:4:4 (7m/23ft) Cat6 v1 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (70m/230ft) 3840x2160p @24Hz 10bit 4:2:0 HDR (35m/115ft) 3840x2160p @30Hz 8bit 4:4:4 (35m/115ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (NA) 4096x2160p @60Hz 8bit 4:2:0 (35m/115ft)v2 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (70m/230ft) 3840x2160p @24Hz 10bit 4:2:0 HDR (35m/115ft) 3840x2160p @30Hz 8bit 4:4:4 (35m/115ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (35m/115ft) 4096x2160p @60Hz 8bit 4:2:0 (35m/115ft) 4096x2160p @60Hz 8bit 4:4:4 (35m/115ft) Cat6a/7 v1 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (70m/230ft) 3840x2160p @24Hz 10bit 4:2:0 HDR (35m/115ft) 3840x2160p @30Hz 8bit 4:4:4 (35m/115ft)4096x2160p @60Hz 8bit 4:2:0 (35m/115ft)v2 1920x1080p @60Hz 12bit (70m/230ft) 1920x1080p @60Hz 16bit (70m/230ft) 3840x2160p @24Hz 10bit 4:2:0 HDR (35m/115ft) 3840x2160p @30Hz 8bit 4:4:4 (35m/115ft) 3840x2160p @60Hz 10bit 4:2:0 HDR (35m/115ft) 4096x2160p @60Hz 8bit 4:2:0 (35m/115ft)4096x2160p @60Hz 8bit 4:4:4 (35m/115ft) |
| Поддерживаемые стандарты | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT 2100 |
| Maximum Pixel Clock | HDMI: 600MHz | HDBaseT: 297MHz |
| HDMI | HDMI 2.0 | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included) |
| HDBaseT™ | HDMI 2.0 | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR and RS-232 |
| ИК | 1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT™1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™ |
| RS-232 | 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT™ |
| Источник питания | 18V DC 1A |
| PoH | 48V 15.4W |
| Макс. потребляемая мощность | 8.88W |
| Безопасность | CE | FCC | RoHS | RCM |
| Rack Units | Wall Box | Version 1 <1UVersion 2 <1U |
| Высота | Version 1 17mm/0.67inVersion 2 15.2mm/0.6in |
| Ширина | Version 1 140mm/5.52in Version 2 136.4mm/5.38in |
| Глубина | Version 1 90.2mm/3.56inVersion 2 74.2mm/2.93in |
| Вес, кг | Version 1 74.2mm/2.93inVersion 2 0.22kg/0.48lbs |
| Рабочая температура, °C | 32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing |
| BTU/БТЕ макс. | 30.30 BTU/hr |
О товаре
WyreStorm EX-35-H2 Комплект приёмника/передатчика 4K HDR 4:4:4 60Hz HDBaseT™ с PoH, двунаправленная передача ИК & RS-232 (4K: 35м, 1080p: 70м) вы купите по выгодной цене у официального дистрибьютора WyreStorm - в "Хай-Тек Медиа"
